Product Details:
|
| Part No.: | 8980152740 | OEM NO.: | 8980152740 8 98015274 0 |
|---|---|---|---|
| Part Type: | Front Spring Bracket | Warranty: | 6 Months |
| Application: | Chassis Parts | Quality: | Standard OEM |
| Car Make: | ISUZU NPR NQR90 | Model: | NPR 700P 4HK1 |
| Material: | Steel | Color: | Black |
| Year: | 1986-2019 | ||
| Highlight: | 8 98015274 0 Front Spring Bracket,ISUZU NPR Front Spring Bracket,ISUZU NQR90 Front Spring Bracket |
||

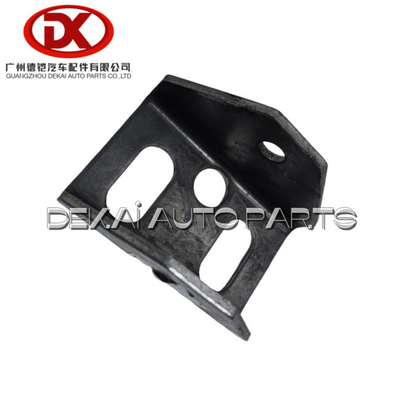

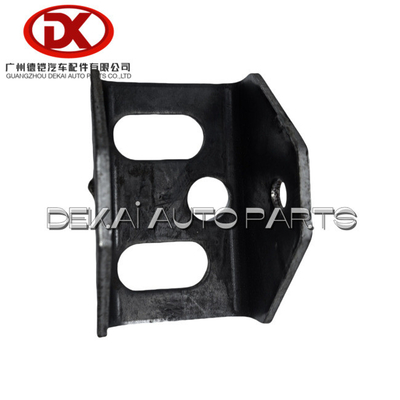

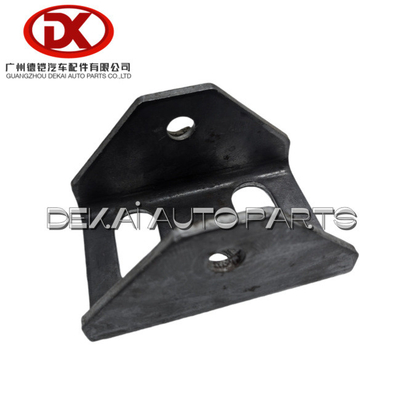

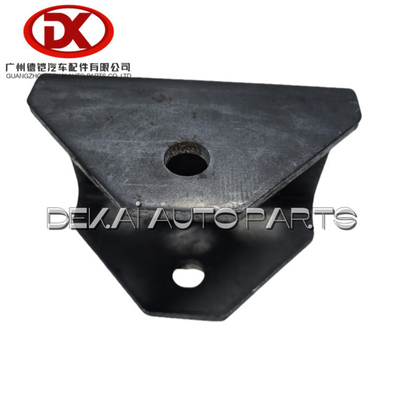

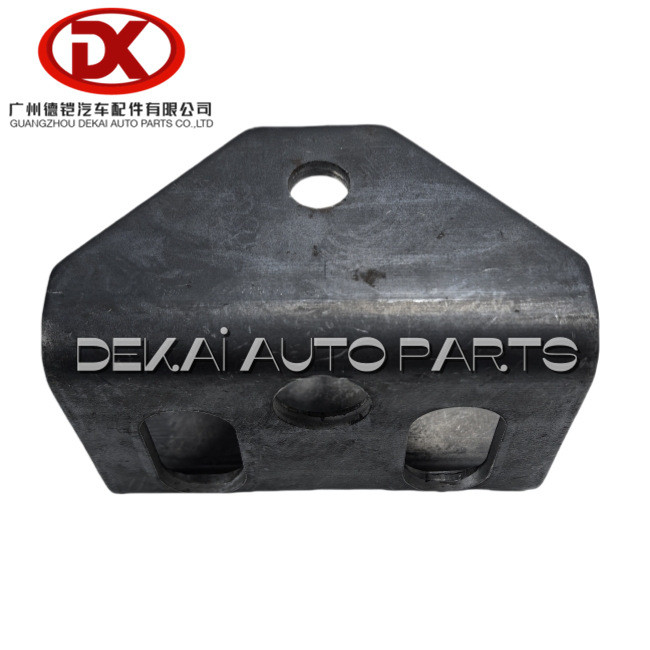

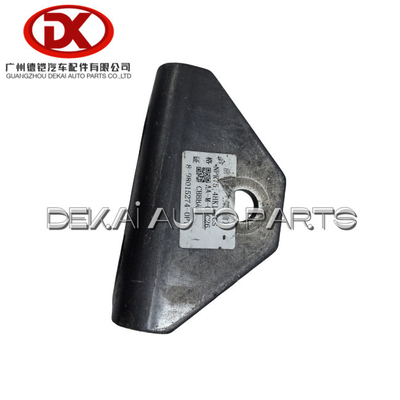

8 98015274 0 8980152740 Front Spring Bracket ISUZU NPR NQR90
| Part No. | 8980152740 |
| OEM No. | 8980152740 8 98015274 0 8-98015274-0 |
| Description | Front Spring Bracket |
| Model | ISUZU NQR90 4HK1 |
8980152740 8 98015274 0 8-98015274-0 Front Spring Bracket NQR90 4HK1 ISUZU
| Part No.: | OEM No.: | Part Name | Model |
|
WW100001
|
А091-6106239 | Door regulating screw with nut | BOGDAN A-091/92 |
| WW100002-1 | 9-297035293-GC 8-97035293-GC | Door lock set | 100p NKR NHR 4HG1/4HG1-T/4HE1/4HK1 |
| WW100002 | 9-297035293-GC 8-97035293-GC | Door lock set | 100p NKR NHR 4HG1/4HG1-T/4HE1/4HK1 |
| WW100003 | WW100003 | Door bracket BOGDAN A-091 | BOGDAN A-091 |
| WW100004 | WW100004 | Door bracket BOGDAN A-092 | BOGDAN A-092 |
| WW100005 | WW100005 | Door handle inner | BOGDAN A-092 |
| WW100006 L | 8978677221 | Door handle out ISUZU left | ISUZU NQR |
| WW100007 | 5-87870052-GC | Door axle end | BOGDAN A-091/92 |
| WW100008 | WW100008 | Door eccentric upper | BOGDAN A-091/92 |
| WW100009 | WW100009 | Door eccentric lower | BOGDAN A-091/92 |
| WW100010 | WW100010 | Door veil | BOGDAN A-092 |
| WW100011 | А092-6106223-01 | Door bracket upper | BOGDAN A-091/92 |
| WW100012 | WW100012 | Door frame seal 2.2м | BOGDAN A-091/92 |
| WW100013 | WW100013 | Door seal ; pasangers | BOGDAN A-091/92 |
| WW100014 | WW100014 | Door cover with brussh A092 | BOGDAN A-092 |
| WW100015 | WW100015 | Lock | BOGDAN A-091/92 |
| WW100016 | WW100016 | Door channel | BOGDAN A-091/92 |
| WW100017 R | 8978677211 | Door handle out ISUZU right | ISUZU NQR |
| WW100018 | 8974053100 | Door handle inner NLR left | ISUZU NLR/NPR |
| WW100019 | 8974053090 | Door handle inner NLR right | ISUZU NLR/NPR |
| WW100020 | 8980290530 | Door handle inner NLR left with mechanism and cables | ISUZU NLR/NPR |
| WW100021 | 8980290520 | Door handle inner NLR right with mechanism and cable | ISUZU NLR/NPR |
| WW100022 | 8974093890 | Door handle inner NQR/NPR left | ISUZU NQR/NPR |
| WW100023 | 8974093880 | Door handle inner NQR/NPR right | ISUZU NQR/NPR |
| WW100024 | WW100024 | Door handle out ISUZU left NLR/NPR | ISUZU NLR/NPR |
| WW100025 | WW100025 | Door handle out ISUZU right NLR/NPR | ISUZU NLR/NPR |
| WW100026 | 8974053130 | Window handle | ISUZU NQR/NPR/NLR |
| WW100027 | 8974053170 | Door handle inner NLR/NPR left | ISUZU NLR/NPR |
| WW100028 | 8974053160 | Door handle inner NLR/NPR right | ISUZU NLR/NPR |
| WW100029 | 8921412450 | Door open limiter ISUZU NQR 71 | ISUZU NQR |
| 8980174221 | 8980174221 | Front Door Door Lock | NPR75/4HK1-TCS |
Working of Air Braking System :
When the brake pedal is pushed the brake valve opens and compressed air is allowed into the brake chamber.
The brake valve consists of three passages.
1. Air intake
2. Exhaust
3. Brake chamber
When the brake pedal is pressed the exhaust passage will be closed and Air intake passage open and compressed air goes back to the chamber. During return stroke the exhaust passage opens while intake closes and used air goes to the atmosphere. This system fitted with an emergency mechanical brake, which can be used when air supply fails the air brake system, which is called an air-assisted hydraulic braking system.
Working principle:
As shown in the figure, in the air brakes the compressed air (around 700 kPa) is used to actuate the brake mechanism. The figure shows the complete layout of the Air Brake System. It consists of Air filter, unloading valve, Air compressor, Air reservoir, Brake valve, and 4 numbers brake chamber. The compressor takes atmospheric air through the air filter and compresses the air. This air is stored under pressure in the air reservoir. From this reservoir air goes to various accessories of the vehicle which operates on compressed air. Part of the air goes to the brake valve. The control of the brake valve is done by a driver who controls the intensity of braking according to an emergency.
Pedal Depressed: When the brake pedal is depressed, compressed air from the reservoir is transmitted through pipes equally in all directions to the brake chambers through brake valve which further applies the brake.
Pedal Released: When the driver releases the brake pedal, the master cylinder piston returns to its original position due to return spring, and the pressure is dropped. It releases brake shoes from brake drum to their: original position and brakes are released.
Our advantage
1． Quality stable, price competitive, good after-sale service
All of the products we offer are good quality with reasonable price. We focus on the product quality and after-sales services to ensure the benefit of our customers. To give customers confidence in long-term cooperation with our company.
2． Many of our products have stock, the delivery time is fast.
Our Isuzu products have a large amount of stock inventory, can save time cost for customers. The stock products we can ship within 3 days. if the product need to produce, the delivery time will be depends on the items and the quantity of the order.
3. No MOQ Request, small order acceptable.
Our ISUZU products we do not have MOQ requirements, we accept any quantity of orders from customers. Of course, the order quantity is bigger, the price will be more favorable.
4. One-stop service
We can provide to customers with other products except Isuzu parts, and we can receive goods for customers from other suppliers and make shipment.
