Product Details:
|
| Part Type: | Power Steering Pump | Product Name: | Auto Power Steering Pump |
|---|---|---|---|
| OEM NO.: | 443102790 44310-2790 | Warranty: | 6 Months |
| Engine Model: | HINO500 J08E J08C | Quality: | 100% Tested |
| Car Make: | Hino 500 J08C | Year: | 2005-2010 |
| Packing: | Neutral Packing | Material: | Steel |
| Color: | Black | Maximum Pressure: | 130bar |
| Highlight: | 44310-2790 Hino Truck Spare Parts,J08c Hino Truck Spare Parts,J08c Power Steering Pump |
||

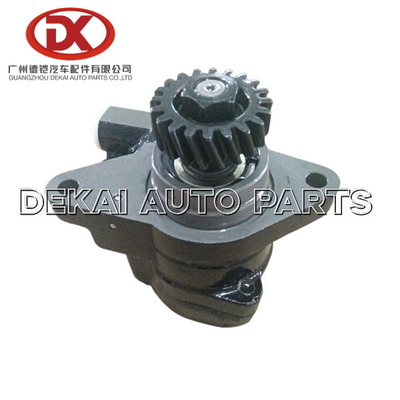

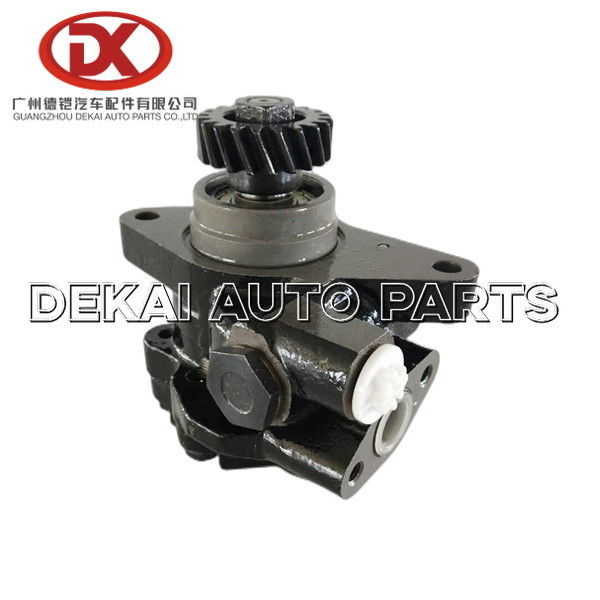

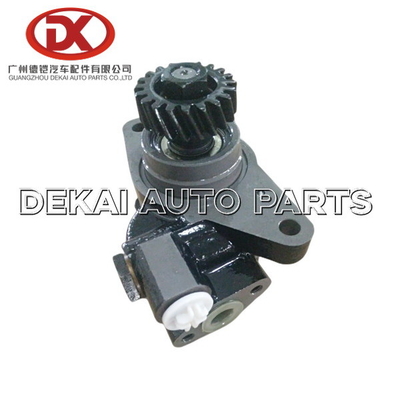

Hino Truck Spare Parts J08c Power Steering Pump 443102790 44310-2790
| Part No. | 44310-2790 |
| OEM No. | 443102790 44310-2790 |
| Description | Power Steering Pump |
| Model | Hino Truck |
44310-2790 Power Steering Pump Hino Truck
More Hydraulic Steering Pumps Hino:
| OEM NO.:HINO H07C Ref No.:44310-1880/44310-1930 |
Nominal displacement:14.33ml/r |
| Maximus Pressure: 100bar | |
| Highest Rotational Speed:500-3200R/min | |
| Controlled flow rate: 8L/min | |
| Fuel feed hole:M22x1.5 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| OEM NO.:HINO EM100/EK100 Ref No.:44310-162/44310-1490 |
Nominal displacement:16ml/r |
| Maximus Pressure:130bar | |
| Highest Rotational Speed:500-3200R/min | |
| Controlled flow rate:16L/min | |
| Fuel feed hole: Φ12 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| OEM NO.:HINO J08C Ref No.:8B23864 2232 |
Nominal displacement:13.6ml/r |
| Maximus Pressure:125bar | |
| Highest Rotational Speed:500-3200R/min | |
| Controlled flow rate:8L/min | |
| Fuel feed hole:Φ16 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Left | |
| OEM NO.:HINO H07D Ref No.:44310-2200 |
Nominal displacement:14.33ml/r |
| Maximus Pressure:85bar | |
| Highest Rotational Speed:500-3200R/min | |
| Controlled flow rate:7L/min | |
| Fuel feed hole:M22x1.5 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| OEM NO.:HINO EH700 Ref NO.:44310-1561 |
Nominal displacement:13ml/r |
| Maximus Pressure:80bar | |
| Highest Rotational Speed:500-3200R/min | |
| Controlled flow rate:8.5L/min | |
| Fuel feed hole:M22x1.5-6H | |
| Fuel discharge hole:M16x1.5-6H | |
| Direction of rotation:Right | |
| OEM NO.:HINO EH700 AK/H07C BUS Ref NO.:44310-179/44310-1990 |
Nominal displacement:13.6ml/r |
| Maximus Pressure:100bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate:10L/min | |
| Fuel feed hole:M22x1.5 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| OEM NO.:HINO P11C Ref No.:44350-1610 |
Nominal displacement:28ml/r |
| Maximus Pressure:140bar | |
| Highest Rotational Speed:625-4790R/min | |
| Controlled flow rate:17L/min | |
| Fuel feed hole: Φ27 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| OEM NO.:HINO E 13C Ref NO.:44310-E0310 |
Nominal displacement:28ml/r |
| Maximus Pressure:147bar | |
| Highest Rotational Speed:625-4790R/min | |
| Controlled flow rate:17L/min | |
| Fuel feed hole:Φ29.3 | |
| Fuel discharge hole:M16x1.5-6H | |
| Direction of rotation:Right | |
| OEM NO.:HINO J05C |
Nominal displacement:14.5ml/r |
| Maximus Pressure:130bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate:17L/min | |
| Fuel feed hole:Φ29.3 | |
| Fuel discharge hole:M16x1.5-6H | |
| Direction of rotation:Right |
Replacing the power steering pump is another project that can be broken down into seven basic steps:
Remove the lo-side hose from the gear and let the system drain
Replace the hose and refill the reservoir. Run the engine while turning the wheel. Remove the hose and all the system to drain again.
Remove the lo-side hose from the pump
Remove the hi-side hose from the pump
Remove the bolts from the bracket and remove the pump from the car
Reinstall the pump and bracket bolts
Reinstall the hoses and refill and “burp" the system
Refill and burp the system
Will adding power steerng fluid temporarily fix bad pump?
Running a power steering pump without oil can quickly cause damage, so it’s important to react quickly, repair any leaks and fill it with fluid again. Thankfully, with the help of Bar’s Leaks, repairing a power steering fluid leak is quick, easy and affordable.
