Product Details:
|
| Part Type: | Hydraulic Steering Pumps | Direction Of Rotation: | Left |
|---|---|---|---|
| OEM NO.: | 44310-2362/44310-2322 | Warranty: | 6 Months |
| Engine Model: | J08C | Quality: | Factory, Standard |
| Car Make: | Hino 500 J08C | Year: | 1989-2004 |
| Position: | Brake System | Material: | Steel |
| Color: | Black | Fuel Feed Hole: | M20x1.5 |
| Highlight: | Truck Hydraulic Steering Pumps,J08C Hydraulic Steering Pumps,Hydraulic Steering Pumps 44310-2362 |
||

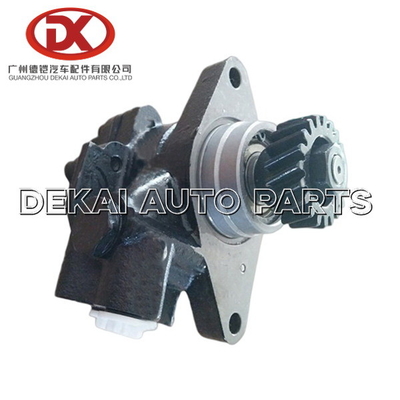

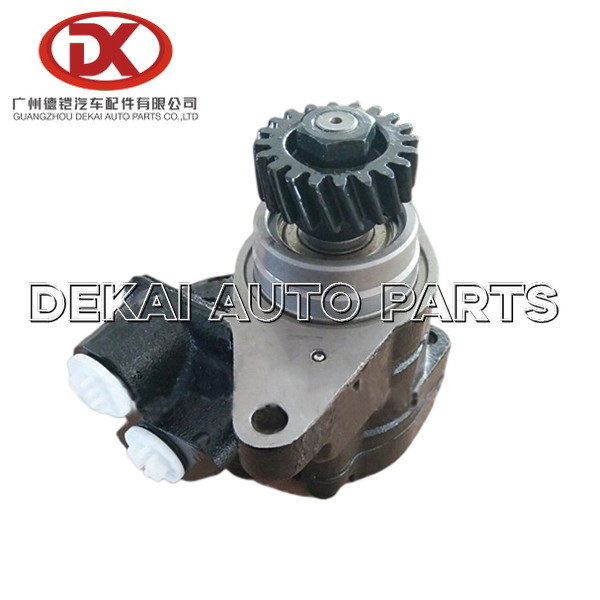

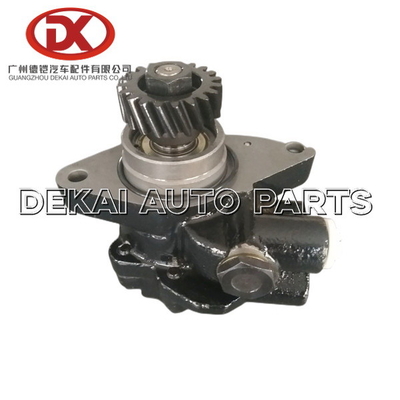

Hydraulic Steering Pumps Truck Spare Parts 44310-2362 Hino 500 J08C
| Part No. | 44310-2362 |
| OEM No. | 44310-2362 |
| Description | Hydraulic Steering Pumps |
| Model | Hino Truck 500 |
44310-2362 Hydraulic Steering Pumps Hino Truck 500
More Hydraulic Steering Pumps Hino:
| Drawing | Details |
| 1.OEM NO.:HINO HJ08C Ref No.:44310-2362/44310-2322 |
Nominal displacement:14.33ml/min |
| Maximus Pressure:130bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate:16 L/min | |
| Fuel feed hole:M20x1.5 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Left | |
| 2.OEM NO.:HINO HJ08C Ref No.:WITH SCREW |
Nominal displacement:20ml/min |
| Maximus Pressure:130bar | |
| Highest Rotational Speed:500-3500R/min | |
| Controlled flow rate:16 L/min | |
| Fuel feed hole: Φ20 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Left | |
| 3.OEM NO.:HINO Ref No.:44350-1570 |
Nominal displacement:20ml/r |
| Maximus Pressure:130bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate:16L/min | |
| Fuel feed hole:Φ26.5 | |
| Fuel discharge hole:M16x1.5-6H | |
| Direction of rotation:Right | |
| 4.OEM NO.:HINO H06CT/H07D Ref No.:44310-1901/44310-1881 |
Nominal displacement:11ml/r |
| Maximus Pressure:85bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate: 7L/min | |
| Fuel feed hole:M22x1.5 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| 5.OEM NO.:HINO H07D-H05CT Ref NO.: |
Nominal displacement:11ml/r |
| Maximus Pressure:110bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate:12L/min | |
| Fuel feed hole:M22x1.5 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right | |
| 6.OEM NO.:HINO EF750 Ref No.:44300-1641 |
Nominal displacement:18ml/r |
| Maximus Pressure:100bar | |
| Highest Rotational Speed:500-3600R/min | |
| Controlled flow rate:16L/min | |
| Fuel feed hole: Φ12 | |
| Fuel discharge hole:M16x1.5 | |
| Direction of rotation:Right |
What Is The Master Cylinder?
The brake master cylinder is a component in your car’s braking system that drives the pressure generated by the brake pedal to the braking mechanism at your vehicles’ wheels. It’s essentially the heart of your car’s brake system.
When you press down on the brake pedal, that force pushes a piston through the brake cylinder, converting the force into hydraulic pressure.
This pressure pumps hydraulic fluid through the brake lines, transmitting pressure to a secondary cylinder at each wheel’s braking mechanism.
The secondary cylinders drive the caliper piston to engage the brake calipers in disc brakes (the wheel cylinder in drum brakes). This action then goes on to stop the wheel.
The clutch system in manual cars also employs master cylinders, but they’re not the same kind as brake master cylinders.
Our advantage
1． Quality stable, price competitive, good after-sale service
All of the products we offer are good quality with reasonable price. We focus on the product quality and after-sales services to ensure the benefit of our customers. To give customers confidence in long-term cooperation with our company.
2． Many of our products have stock, the delivery time is fast.
Our Isuzu products have a large amount of stock inventory, can save time cost for customers. The stock products we can ship within 3 days. if the product need to produce, the delivery time will be depends on the items and the quantity of the order.
3. No MOQ Request, small order acceptable.
Our ISUZU products we do not have MOQ requirements, we accept any quantity of orders from customers. Of course, the order quantity is bigger, the price will be more favorable.
4. One-stop service
We can provide to customers with other products except Isuzu parts, and we can receive goods for customers from other suppliers and make shipment.
