Product Details:
|
| Size: | OEM Standard Size | OEM NO.: | 8970328475 8973494230 8970201341 |
|---|---|---|---|
| Part Type: | Clutch Slave Cylinder | Warranty: | 3 Months |
| Model: | ISUZU NPR 600P | Quality: | Factory, Standard |
| Parts Range: | Clutch Parts For ISUZU | Engine Mode: | 4HF1 MXA5R |
| Weight: | 0.65Kg | H.S Code: | 902920100 |
| Highlight: | Myy5t ISUZU Clutch Parts,ISUZU Clutch Parts 8973494230,8970201341 |
||

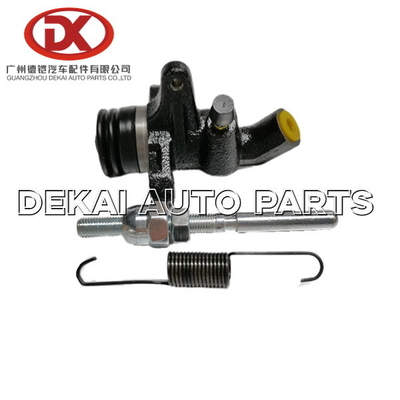

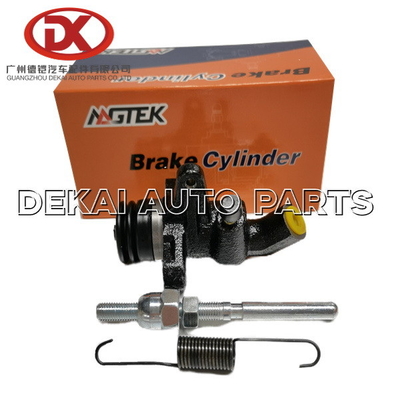

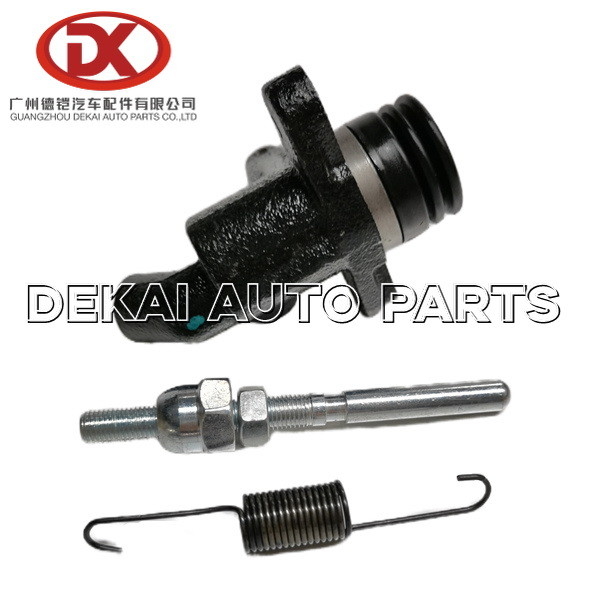

Clutch Slave Cylinder 8973494230 8970201341 Isuzu Myy5t 4hf1
| Part No. | WW60018 |
| OEM No. | 8970328475 8973494230 8970201341 |
| Description | Clutch slave cylinder |
| Model | NPR 4HF1 600P MXA5R |
ISUZU Clutch slave cylinder 8970328475 8973494230 8970201341 NPR 4HF1 600P MXA5R
Clutch master cylinder
Hydraulic clutches for manual transmissions use brake fluid to supply pressure to disengage the clutch from the engine. Pushing in the clutch pedal makes fluid flow from a master cylinder (or fluid reservoir) to the slave cylinder, which moves the pressure plate, allowing the driver to shift gears.
How to Test a Slave Cylinder
Open the hood. Locate the slave cylinder. Watch the cylinder as an assistant depresses the clutch pedal.
Get in the car and start it.Look around the cylinder for wet spots that indicate it is leaking. If there is fluid coming from the cylinder, it needs to be replaced.
Can a clutch slave cylinder fail without leaking?
Yes master cylinders can fail without leakage, the clutch master cylinder has a piston inside and there are separate channels for hi-pressure line and return(low pressure) line and their location in the cylinder differs for manufacturers
| DK-IS1031 | 8971764060 8981176440 8971629630 |
ISUZU 100P | 3/4 |
| DK-IS1031 H | 8971764060 8981176441 |
ALVAND | 3/4 |
| DK-IS1032 | 8972107489 | ISUZU 700P 4HF1 | 13/16 |
| DK-IS1033 | 8980982510 8981016320 8980976940 8980977650 |
ISUZU 700P 4HF1 | 13/16 |
| DK-IS1034 | 8972246120 | ISUZU | 13/16 |
| DK-IS1035 | 8970485670 8944632471 8942585260 8943129030 8970328320 |
IS ELF, NPR,NKR,NHR57 | 3/4 |
| DK-IS1036 | 1475001600 | ISUZU | 7/8 |
| DK-IS1037 | 979451760 8979434070 |
ISUZU | 5/8 |
| DK-IS1038 | 3871234270 8979466271 |
ISUZU | 5/8 |
| DK-IS1039 | 8972120150 | ISUZU 100P 增压 | 1 1/16 |
| DK-IS1040 | 8973101800 | ISUZU 600P 增压 | 1 |
| DK-IS1041 | 8970397040 8979415150 |
ISUZU PICK UP CHEVROLET LUV 2.5- 2.8 4WD DIESEL 13 |
13/16 |
| DK-IS1042 | 8970479710 | ISUZU 100P | 1 1/16 |
| DK-IS1043 | 8980047800 8973494240 8973494235 |
ISUZU 700P MYY5T/4HF1 | 1 |
| DK-IS1044 | 8943192970 | ISUZU NPR58,ELF | 1 |
| DK-IS1045 | 8970328471 8970201341 8970328470 |
IS NKR,NPR 4HF1,MTB170DX ELF | 1 |
| DK-IS1046 | 8970242930 8944596950 8970242931 8943193000 |
IS NHR 2.5 ,2.8,NKR55(87') |
1 1/16 |
| DK-IS1047 | 1475700502 | ISUZU FTR800 | 1 |
| DK-IS1048 | 8980278801 | ISUZU NPR66 | 1 |
| DK-IS1049 | 8980400431 | ISUZU 4HK1 short push rod |
1 |
| DK-IS1050 | 8980896761 | ISUZU 4HK1 long push rod |
1 |
